Shimano Deore M6100, M5100 & M4100
After the mountain bike flagship XTR has already set benchmarks and Deore XT and SLX have followed suit, the Deore M6100 now rounds off Shimano's 12-speed lineup. It is complemented by the components of the M5100 and M4100 series which will equip 11- and 10-speed drivetrains at the same high level.
Regarding the price, the current Shimano Deore groups are positioned in the entry-level range, but are not prepared to compromise in terms of performance, quality and reliability. Almost everything that the high end groups XTR, XT and SLX have to offer in terms of technology, innovation, performance and range of functions, you will find in the Deore components, too.

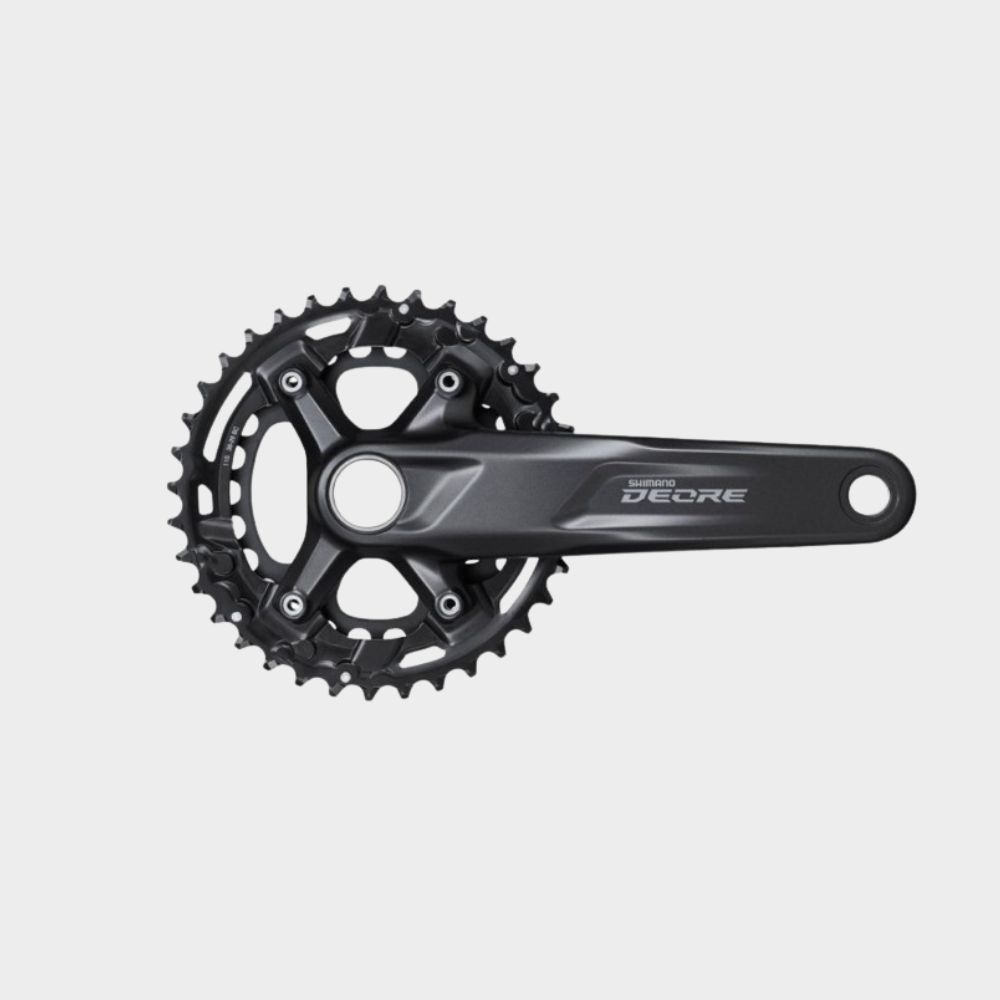

Shimano Deore FC-M5100-2 crankset
The Shimano Deore FC-M5100-2 crank is designed for 2x11-speed drivetrains and features a 2-piece construction keeping the weight low. A chainring ratio of 36 to 26 teeth offers an extra wide gearing range for an efficient transmission of pedal force. The Deore crankset with a chain line of 48.8 mm and a Q-factor of 178.5 mm is suitable for dropouts which feature an O.L.D. of 135 or 142 mm.
Bottom bracket recommendation: SM-BB52 (thread type) / BB-MT500-PA (Press Fit)
Technical details of the 2-speed crank:
- Material:
crank arms: aluminium (painted)
axle, chainrings: steel
hardware: stainless steel
- chainline: 48.8 mm
- Q-Factor: 178.5 mm
- recommended rear O.L.D.: 135 / 142 mm
