For extended eMTB adventures!
The HXC 1501 SPLINE ONE wheels were developed for all riders who want to tickle out the ultimate performance out of their E-MTB. Equipped with carbon rims that are specially adapted to the increased requirements of E-Bikes, the high-end wheels advance to the top model in the Hybrid range of DT Swiss.
The hub shell of the DT Swiss 240 hubs has also been redesigned to provide better resistance to the higher drive forces and braking torques that modern E-MTB's achieve. At the rear wheel, the Ratchet EXP OS freewheel system which is introduced with this model, provides for a direct transmission of the torque generated by the motor and rider to the ground. The fact that no power is lost in the process, but conversely even the acceleration is improved, is the merit of the reinforced Hybrid 2 spokes.
Each component has been carefully designed, produced and tested to guarantee a stress-free ride as well as maximum driving pleasure, regardless of the rider's level.

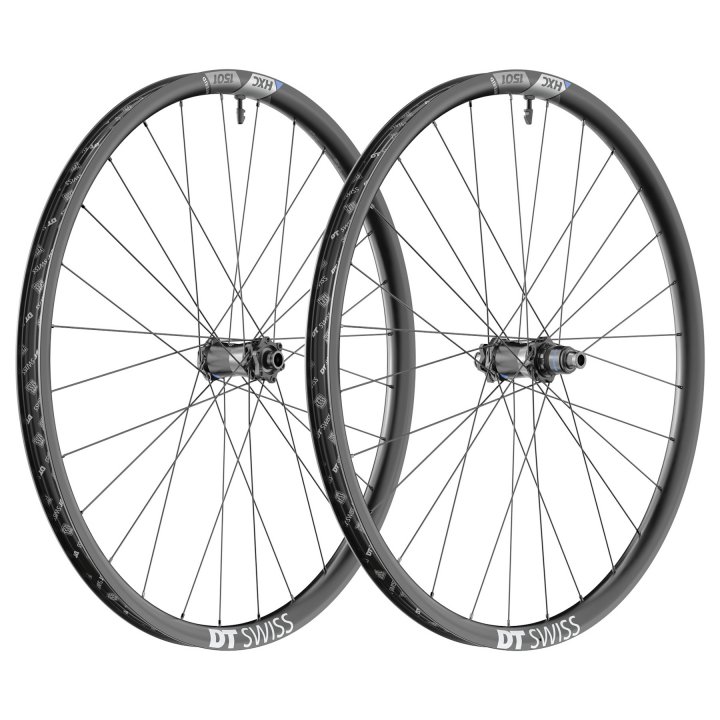

Technical details of the DT Swiss HXC1501 SPLINE ONE 30 wheelset
- rims: DT Swiss HXC 1501 Hybrid MTB (carbon)
- tire type: Tubeless Only*
- construction: Hookless (without hooks) / TSS (Tubeless Straight Side)
- wheel size: 29 inch (700C)
- outer width: 36 mm / inner width: 30 mm / profile height: 25 mm
- hubs: DT Swiss 240 SPLINE ONE Hybrid MTB
- brake disc mount: Centerlock
- freewheel: DT Swiss Ratchet EXP OS (30 teeth / 12º engagement angle)
- freewheel body: Shimano Steel (SS) / Shimano 12SP Steel (SS12) / SRAM XD Steel (SSRAM)
- installation dimension: 15 x 110 mm / 12 x 148 mm Boost (thru axle)
- spokes: DT Swiss Hybrid 2 (Straightpull; triple butted / 2.34 - 1.8 - 2.0 mm)
- spoke count: 28
- spoke pattern: triple crossed (both sides)
- nipples: DT Swiss Squorx (ProLock / ProHead; aluminum; 2.0 x 15 mm)
- weight (manufacturer's specification):
front wheel: approx. 869 g
rear wheel: approx. 1042 / 1025 / 1011 g (HG / Micro Spline / XD)
- max. system weight: 140 kg
Legendary reliability | The Hybrid wheels of the HXC 1501 SPLINE ONE (Straight Pull Line) series benefit from targeted testing procedures and many years of experience in the development of E-MTB components. Thanks to manual work, not only a precise manufacturing quality is achieved, but also the well-known, brand-typical reliability is ensured.
Ratchet freewheel system | The special feature of the patented freewheel system is that all teeth of the two installed ratchet pulleys always mesh simultaneously. Compared to pawl freewheel hubs, where the engagement surface is comparatively small, the loads are distributed evenly over a large contact surface by including the entire face surfaces. The result is lower point loading and thus significantly higher reliability.
Pro Lock technology | The DT Pro Lock spoke nipples prevent an independent loosening of the spoke-nipple connection. A patented two-component adhesive is injected into the nipple thread, which allows the construction of extremely durable wheels. Once the nipples are screwed in, the adhesive is activated and then fully cures. Repeated re-centering is possible without any problems, although the adhesive strength decreases slightly with each re-centering.
Scope of supply:
- front wheel + rear wheel
- Tubeless rim tape (32 mm)
- Tubeless valves (aluminum, 18-25 mm)
