| Product |

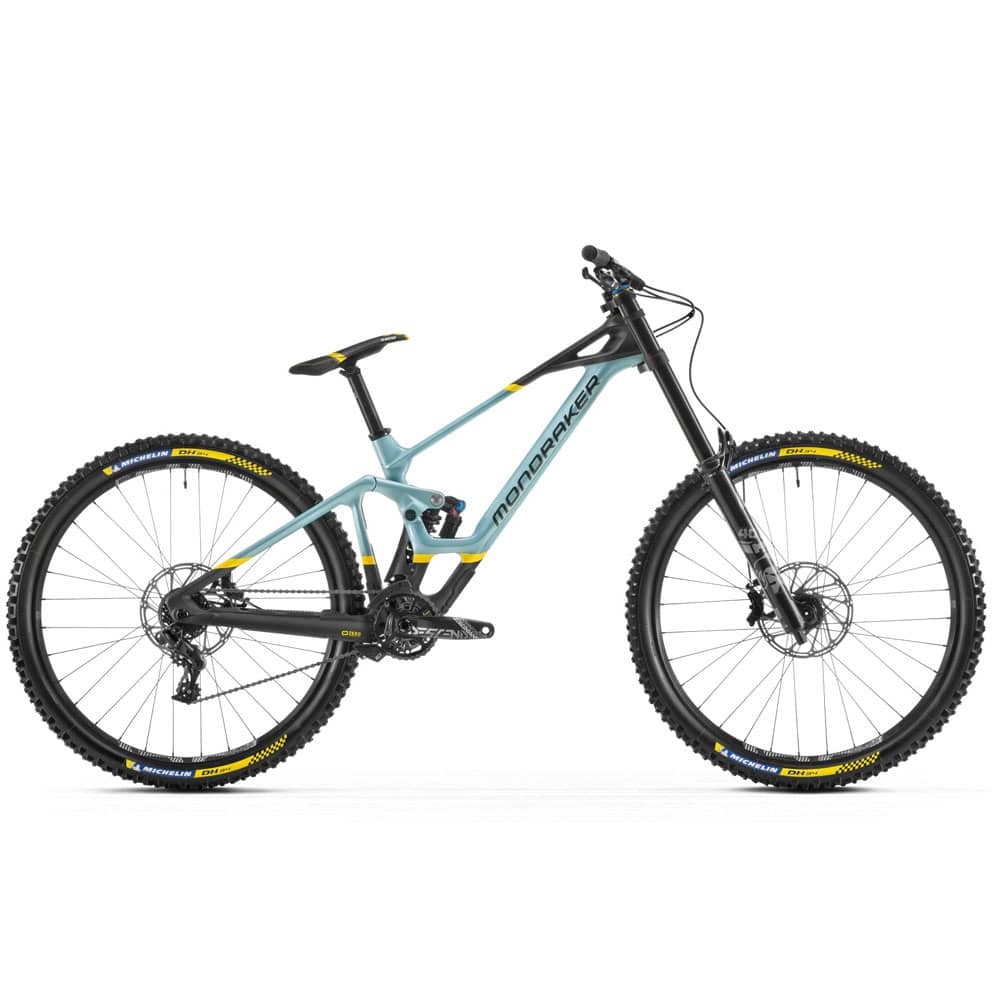

Mondraker Summum Carbon R Bike |
| Model Year |
2022 |
| Riding Type |
Downhill, Freeride / Bike Park |
| Rider |
Unisex |
| Sizes and Geometry |
|
| Wheel Size |
29" |
| Frame Material |
Carbon Fiber |
| Frame Material Details |
Stealth Air Carbon front and rear triangles, Carbon Monoblock upper link, molded chainstay and down tube protection |
| Rear Travel |
200mm |
| Rear Shock |
FOX DHX2 Performance Elite, low-speed compression adjust, low-speed rebound adjust, spring preload, trunnion mount, 225mm x 70mm
Spring rates: 400lbs (SM), 450lbs (MD), 500lbs (LG/XL) |
| Fork |
FOX FLOAT 40 Factory, GRIP2 damper, EVOL, high/low-speed compression adjust, high/low-speed rebound adjust, 56mm offset |
| Fork Travel |
203mm |
| Head Tube Diameter |
Straight, 56mm |
| Headset |
ONOFF Mercurium 1.5 ZS, ACB sealed bearings |
| Handlebar |
ONOFF Sulfur 1.0, double butted 6061 alloy, 800mm width, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Stem |
ONOFF Krypton DH, 6061 alloy, CNC Integrated FG, 25-30mm adjustable length, 31.8mm bar clamp |
| Grips |
ONOFF Diamond, 135mm length, single lock-on |
| Brakes |
SRAM Code R, 4-piston, SRAM CenterLine 203mm 6-bolt one-piece rotors, steel-backed metal sintered pads |
| Brake Levers |
SRAM Code R, tool-free reach adjust |
| Drivetrain |
1x |
| Shifters |
SRAM GX DH, 7-speed, X-ACTUATION |
| Front Derailleur |
None |
| Rear Derailleur |
SRAM GX DH, 7-speed, X-ACTUATION, medium cage |
| ISCG Tabs |
ISCG05 |
| Chainguide |
e*thirteen Vario compact upper slider, alloy backplate; lower pulley guide; direct mount bashguard |
| Cranks |
Truvativ Descendant DH DUB, 165mm length |
| Chainrings |
Truvativ Descendant DH, X-SYNC, direct mount, 34 tooth, steel |
| Bottom Bracket |
SRAM DUB, sealed bearings, 83mm English/BSA threaded |
| Pedals |
None |
| Chain |
SRAM PC-1110, 11-speed, with PowerLock |
| Cassette |
SRAM PG-720, 7-speed, 11-25 tooth |
| Rims |
e*thirteen LG1 Plus DH, 30mm internal width, 6069 welded aluminum, tubeless ready, 32 hole |
| Hubs |
e*thirteen, fully-machined aluminum, triple-sealed, 110x20mm Boost front, 157x12mm SuperBoost rear with 6° engagement and HG driver |
| Spokes |
e*thirteen Hive, triple-butted alloy, alloy nipples with washers |
| Tires |
Michelin DH34, Magi-X DH compound, double-reinforced DH shield casing, wire bead, tubeless ready, 29" x 2.4" |
| Saddle |
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides |
| Seatpost |
SDG Micro I-Beam SP-751, alloy, micro-adjustment, 300mm length |
| Seatpost Diameter |
31.6mm |
| Seatpost Clamp |
Single bolt |
| Rear Dropout / Hub Dimensions |
157x12mm SuperBoost |
| Max. Tire Size |
|
| Bottle Cage Mounts |
None |
| Colors |
Blue/Black |
