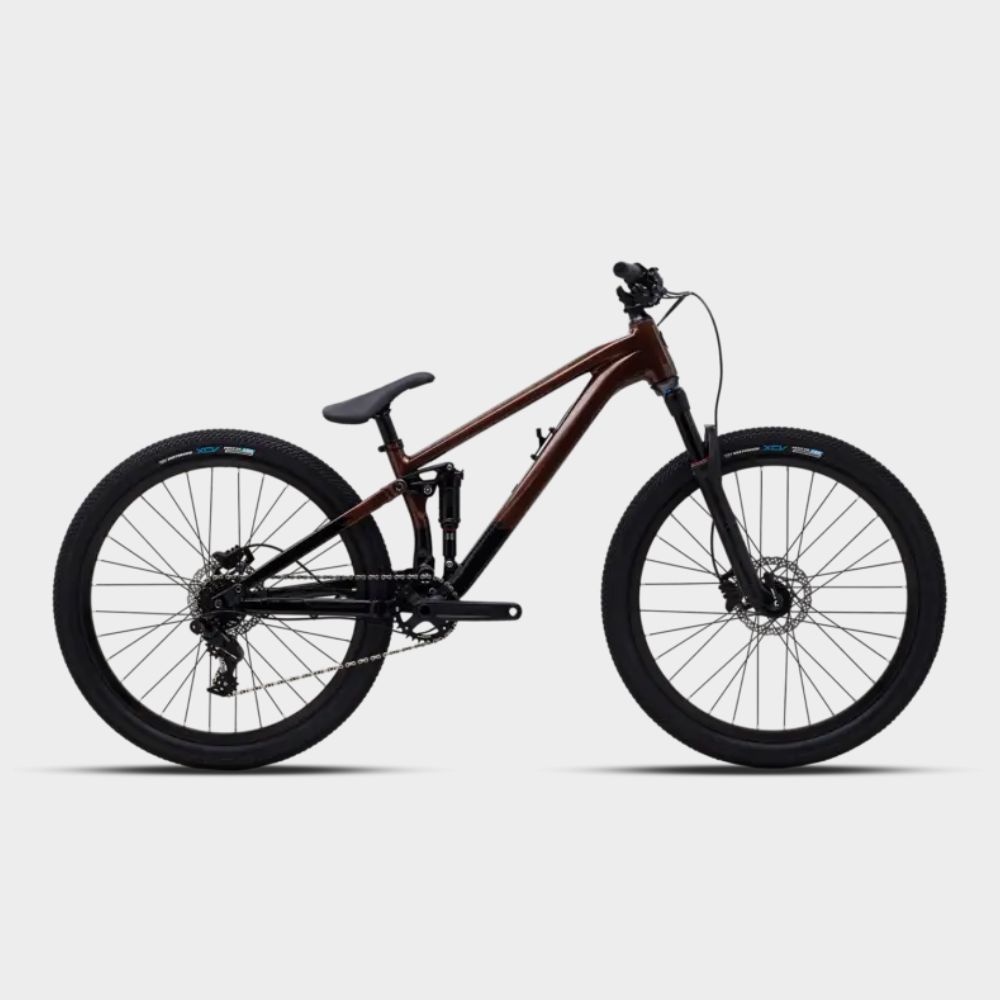

POLYGON TRID ZZ BRONZE 26

Manufacturer: Polygon Bikes

SKU: 502617001

GTIN: 502617001

€2150.00 incl tax

After several years of testing and development in collaboration with Sam Reynolds and Kurt Sorge, we are excited to introduce our much anticipated Slope Style bike – the Trid ZZ. The custom designed ALX alloy frame features an ultra stiff, 69-degree tapered head tube with a 426mm reach and a low 331mm BB height. A threaded BB, and ultra-low standover means this bike is ready for trickery. The bike comes spec’d with a 100mm RockShox Pike DJ fork and Rockshox Monarch rear shock, SRAM GX DH 7 speed drive train and SRAM hydraulic disc brakes. The shifters come standard on the handlebar, however can be easily moved to the downtube if needed.

Availability: Out of stock

Qty:

+ -

Description

Specifications

Riding Type: Dirt Jump / Slopestyle

Rider: Unisex

Sizes and Geometry: One Size

View Geometry

Wheel Size: 26"

Frame Material: Aluminum

Frame Material Details: AL6 alloy

Rear Travel: 100mm

Rear Shock: RockShox Monarch R, 190mm x 51mm

Fork: RockShox Pike DJ

Fork Travel: 100mm

Head Tube Diameter: Tapered, 1.125" top, 1.5" bottom

Headset: ZS 44/28.6 top, ZS 56/40 bottom

Handlebar: Alloy, 750mm width, 38.1mm rise, 31.8mm clamp diameter

Stem: Alloy, 40mm length, 0° rise, 31.8mm bar clamp Grips

Brakes: Shimano MT501, 2-piston

Brake Levers: Shimano MT501

Drivetrain: 1x

Shifters: SRAM GX DH, 7-speed

Front Derailleur: None

Rear Derailleur: SRAM GX DH, 7-speed

ISCG Tabs

Chainguide: None

Cranks: Samox TAF15-D32A, 170mm length

Chainrings: Samox, 32 tooth

Bottom Bracket: Samox Integrated, BSA threaded

Pedals: None

Chain: KMC X11, 11-speed

Cassette: SRAM PG-720, 7-speed, 11-25 tooth

Rims: Alloy, double wall

Hubs: Alloy Spokes

Tires: VEE Tire Co. XCV, 26" x 2.25"

Saddle: Polygon Pivotal

Seatpost: Alloy Pivotal, 200mm length

Seatpost Diameter: 30.9mm

Seatpost Clamp: Single bolt

Rear Dropout / Hub Dimensions

Max. Tire Size

Bottle Cage Mounts: None

Colors: Black Purple

Warranty: 5 years frame

Miscellaneous

- Single pivot rear suspension design
- Internal cable routing
- Shifter mount on down tube for alternative shifter positioning
