VAR CRANK TOOL

Manufacturer: Shimano

SKU: 3435540110006

GTIN: 3435540110006

€199.00 incl tax

Availability: 1 in stock

Qty:

+ -

Description

Repair kit of crank extractor thread
Designed to repair and remove a crank arm whose pulling threads are damaged. Thread a pilot into the bottom bracket spindle, slide onto it the small tap and cut new 24mm x 150 threads.
Then thread special 24mm x 150 extractor to remove the crank arm.
Finally, fit one of those special 24mm dust caps into new threads.

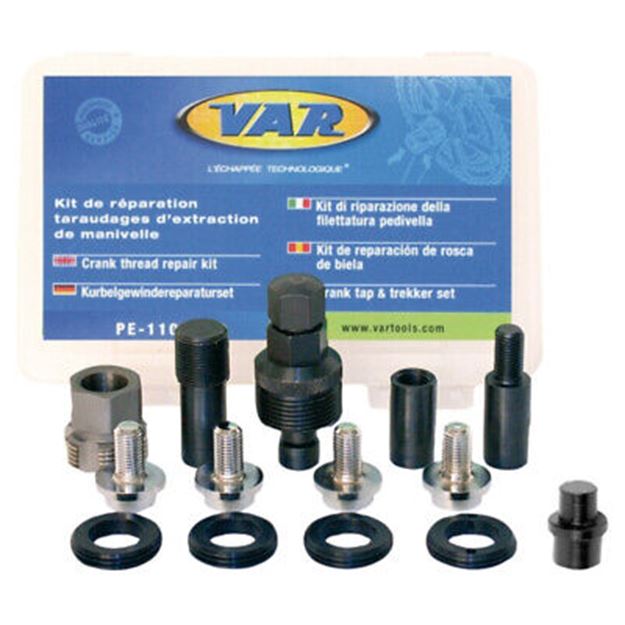

The kit includes :
3 tapping pilots (bolt, nut and splined « Pipe Billet » types)
1 tap in 24mm x 150 made from hardened high speed steel
1 special crank extractor in 24mm x 150
4 aluminum dust caps
4 hex fixing bolts of 8mm
1 M8/M15 crank extractor adaptor for pipe billet spindles PE-39500
PE-11108 - bag of 4 dust caps and 4 hex bolts of 8mm
To be used with cutting oil CD-77000
Weight : 366 g
